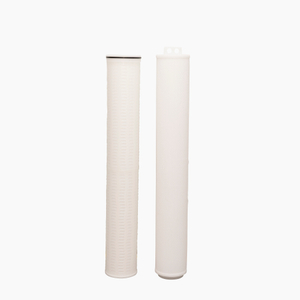

130 Series Ultra-High Flow Rate Filter Cartridge

130 Series is especially designed for high flow requirements. Diameter 130mm can reach a flow rate @200L/min. It is particularly suitable for generation LCD panel production processes.

Features

High flux
The filtration area up to 2㎡. 200L/min flow rate under standard conditions
Effective cost savings
Less frequent replacements and shutdown to reduce costs
Different membrane and removal rating
Customizable membrane(PP/PES/PTFE) and removal rating for wide application

Application

High-generation LCD panel manufacturing process
Semiconductor electronics
High flow liquid
Biopharmaceutical
Food and beverage
Chemicals
Industrial water treatment

Availability:

Quantity:



Inquire Add to Basket

Model:
130 Series

Filter Media	PP/PES/PTFE
Cage/Core/End Cap	PP
Max. Operating Temperature	80℃
Max. Operating Pressure Difference	4bar/21℃
Max. Operating Pressure Difference	2.4bar/80℃

Φ130 Ultra-High Flow Rate Pleated Filter Cartridge

MBorst is Committed to become the world's leading filtration solutions provider.

Opening Hours
Monday-Friday: 9:00am-5:00pm
Closed on All Nationally Observed Holidays

Leave a Message

Quick Links

Product Category

Contact Us

Tel: +86-57187421562
Fax: +86-57187041032
E-Mail: wanxj@mborst.com(Domestic)

alexchen@mborst.com(Overseas)

Sales Address: R502, Digital Intelligence Innovation Center, Debi Rainbow WE, Bldg 3, Guochao Business Center, Xintang St, Hangzhou, Zhejiang 311201, China.

Factory Address: Bldg 4, No.233 Xiaowu, Lijia Village, Xiaoshan District, Hangzhou, Zhejiang 311254, China.

Diameter	Model	Filtration Rating	End Cap Type	Length	Seal Material
130	MPP-SA2	0030=0.3μm 0050=0.5μm ......	TC=222/Flat SC=226/Flat TF=222/Fin SF=226/Fin D=DOE	10=10"	E=EPDM S=Silicone V=Viton
	MPS	0002=0.02μm 0005=0.05μm 0010=0.1μm ......
	MPF	0002=0.02μm 0005=0.05μm 0010=0.1μm 0020=0.2μm ......

Diameter	Model	Filtration Rating	End Cap Type	Length	Seal Material
130	MPP-SA2	0030=0.3μm 0050=0.5μm ......	TC=222/Flat SC=226/Flat TF=222/Fin SF=226/Fin D=DOE	10=10"	E=EPDM S=Silicone V=Viton
	MPS	0002=0.02μm 0005=0.05μm 0010=0.1μm ......
	MPF	0002=0.02μm 0005=0.05μm 0010=0.1μm 0020=0.2μm ......
