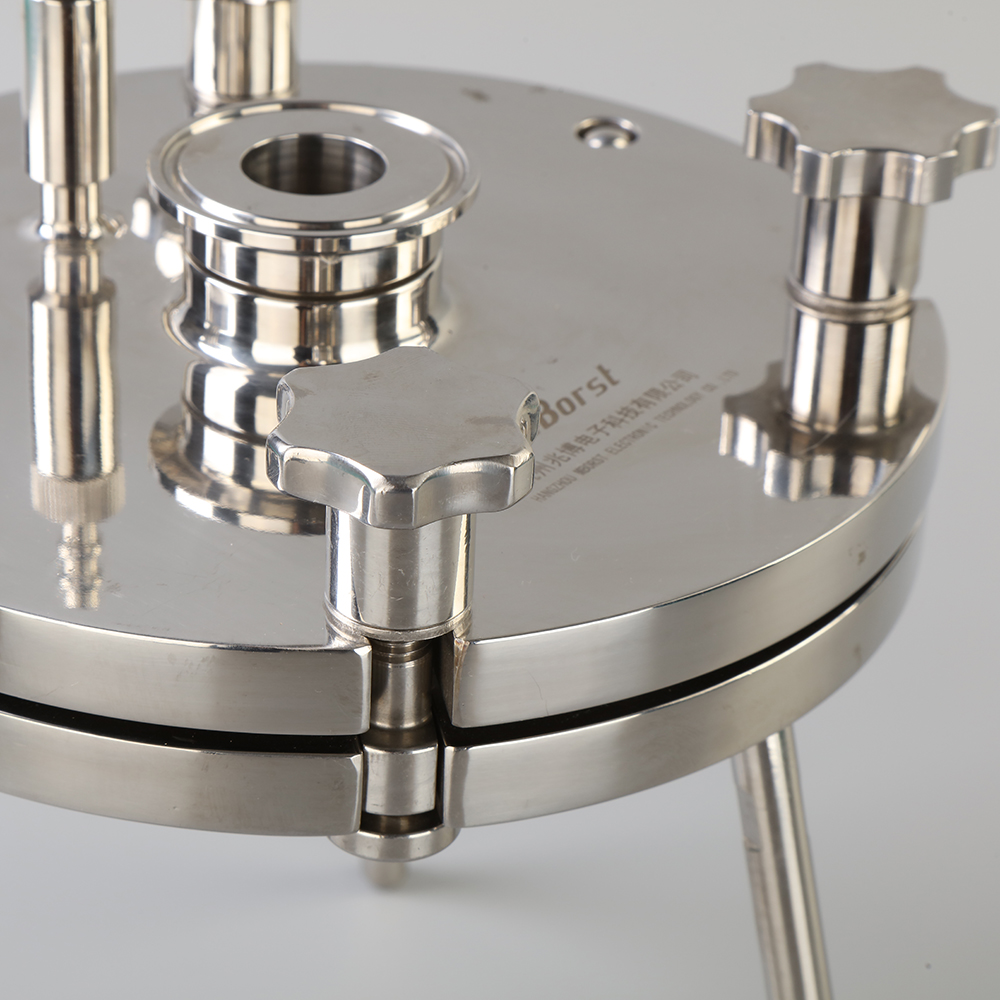

MP Series Stainless Steel Membrane Holder

MBorst MP Series stainless steelmembrane holderis designed for smallvolume filtration like liquid filtration in lab.As a benchmark test. It is used in coniunction with membrane.
Single-membrane, double-membrane and diffetent diameter in 47mm, 90mm,200mm and 293mm are available for all your requirements. Other sizes can also be customized.
It is manufactured according to sanitary requirements and each component can be completely disassembled and cleaned.

Availability:
Quantity:
Inquire Add to Basket

  • MP

Polishing type

MirrorPolish/nternalElectro-polished

Polishing precision

Interior 0.3μm/Exterior 0.4μm

Housing Material

SUS304/316L

Max. Working Pressure

0.6Mpa (6bar)/1.0Mpa (10bar)

Max. Operating Temperature

135°C

Design Temperature

140°C

Sterilization

SIP 121℃/30min




Model

Elements

Diameter

Material

Cylinder Connecton

Inlet/Outlet

Pressure

Surface

Seal

MP



01=1R




47=47mm

90=90mm

142=142mm

200=200mm

293=293mm



A=SUS304

B=SUS316L




T=Tri-Clamp

L=Screw

T=Tri-Clamp



X=0.6


M=Mirror polishing

E=Electrolytic polishing

S=Silicone

E=EPDM

V=Viton

P=PTFE






Stainless Steel Membrane Holder
