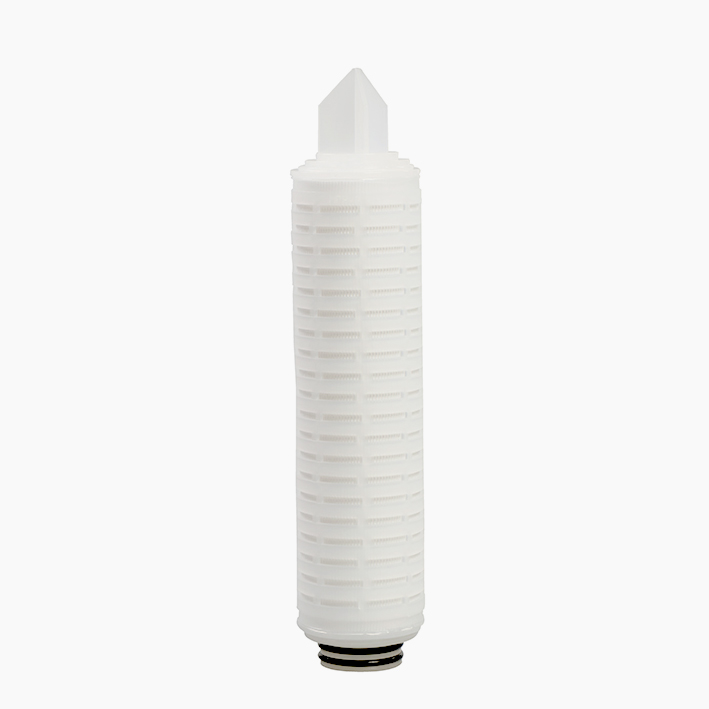

MPV Series PVDF Pleated Filter Cartridge


MPV series filter cartridges are made of PVDF membranewith has extremely low protein adsorption, which makes them especially suitable for culture media, biological reagents, sterile vaccine filtration, etc.
MHPV series are made of modified hydrophilic PVDF membrane, can filter some polar solutions directly without pre-wetting.

Features
  • Extremely low protein adsorption
  • Absolute filtration precision
    99.99% retention rate and up to 0.01μm removal rating
  • Broad chemical compatibility
    The corrosion resistance is preceded only by PTFE membrane. Excellent resistance to conventional chemical reagents
  • 100% integrity test
    Guarantee the interception efficiency and sterilization effect

Application
  • Strong solvent
  • Biological reagent
  • Culture medium
  • Sterile Filtration of physiological saline and other solvents
Availability:
Quantity:
  • MPV


Filter Media

PVDF

Cage/Core/End Cap

PP

Max. Operating Temperature

80℃

Max. Operating Pressure Difference

4bar/21℃

2.4bar/80℃



Model

Filtration Rating

End Cap Type

Length

Seal Material

MPV

MHPV

0010=0.10μm 0020=0.20μm 0045=0.45μm 0100=1.0μm 0300=3.0μm

TC=222/Flat

SC=226/Flat

TF=222/Fin

SF=226/Fin

D=DOE

05=5"

10=10"

20=20"

30=30"

40=40"

E=EPDM

S=Silicone

V=Viton

P=PTFE
