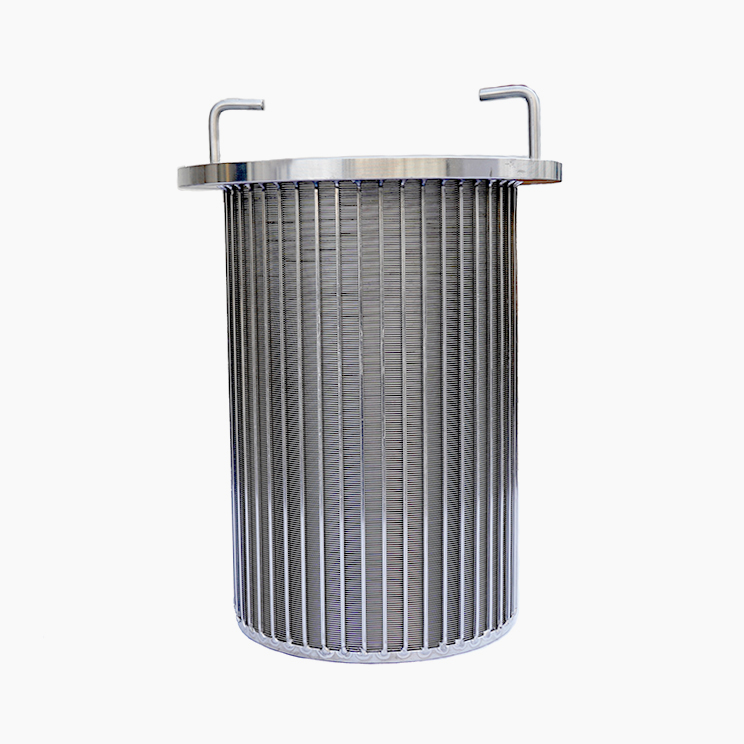

MFX Series Wedge Filter Cartridge

MFX Filter Cartridges are composed of wedge-shaped stainless steel wire and stainless steel support. The wedge structure offers high strength, is resistant to damage during regular cleaning, and can be reused.
These cartridges are suitable for pre-filtration of high-viscosity fluids and have low operating costs.

Features
  • High Temperature and Pressure Resistance
    All stainless steel structure can withstand high temperature and pressure, making it suitable for high-pressure back-washing.
  • Long Lifespan
    Regular cleaning does not easily damage the cartridge, allowing for repeated use.
  • Easy to Clean
    The smooth surface of the wedge wire serves as the filtration surface, making it easy to clean. It can be used in rotary filters in conjunction with scrapers.

Application
  • High viscosity liquid filter
  • Special application for battery material
Availability:
Quantity:
  • MFX

Filter Media

SUS304/316L

Max. Operating Temperature480℃
Max. Operating Pressure Difference

5bar



Model

Diameter

Length

Removal Rating

Material

End Cap Type

Seal Material

Surface Finish

MFX

60=60mm

65=65mm

70=70mm

05=5”

10=10”

20=20”

30=30”

40=40”

01=1μm

02=2μm

03=3μm

05=5μm

07=7μm

10=10μm

15=15μm

20=20μm

50=50μm

100=100μm

150=150μm

D=Customize

A=316L

B=304

TC=222/Flat

SC=226/Flat

TF=222/Fin

SF=226/Fin

D=DOE

L=Screw

D=Flat pressing

E=EPDM

V=Viton


P=Polishing

S=Acid Pickling

B=Electrolysis
