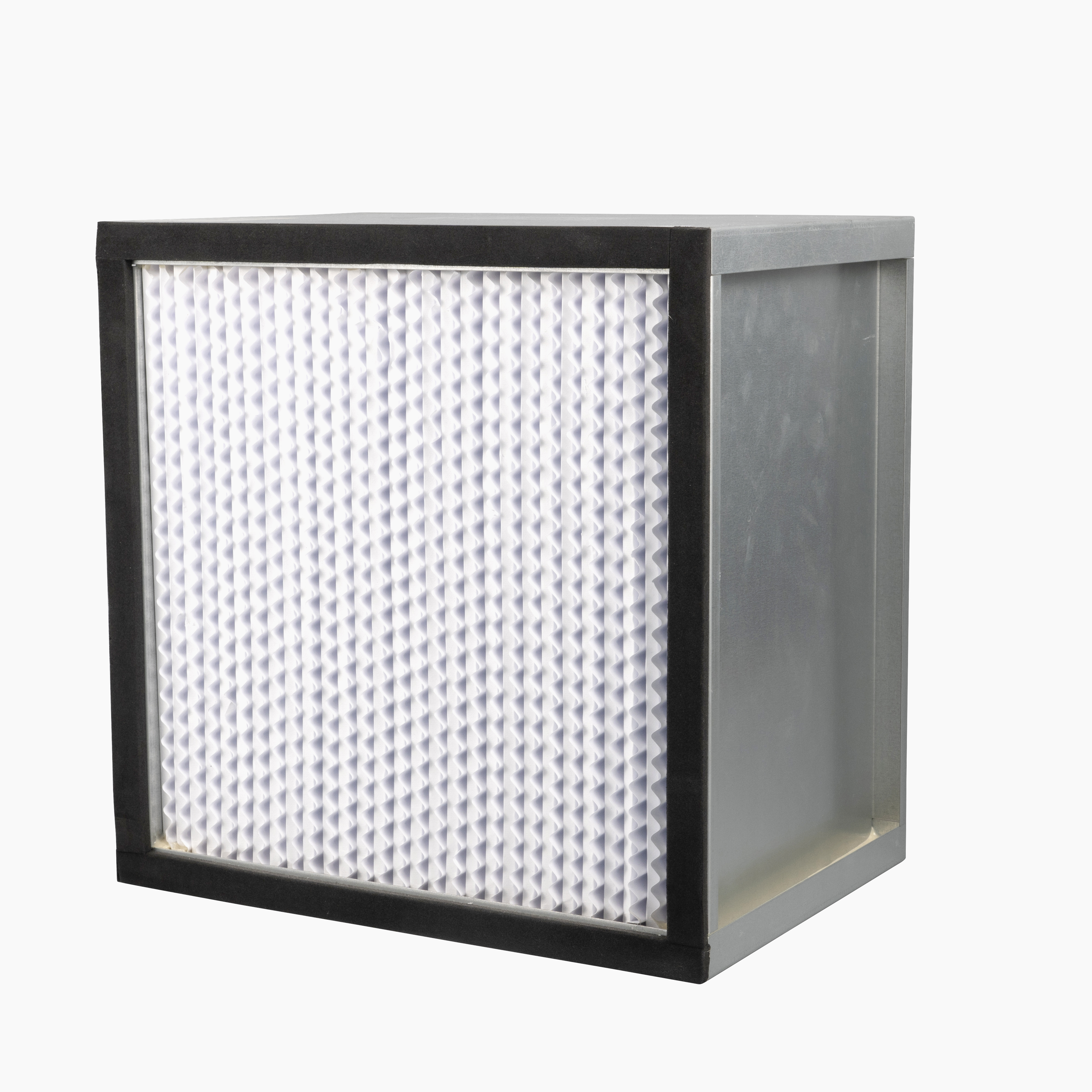

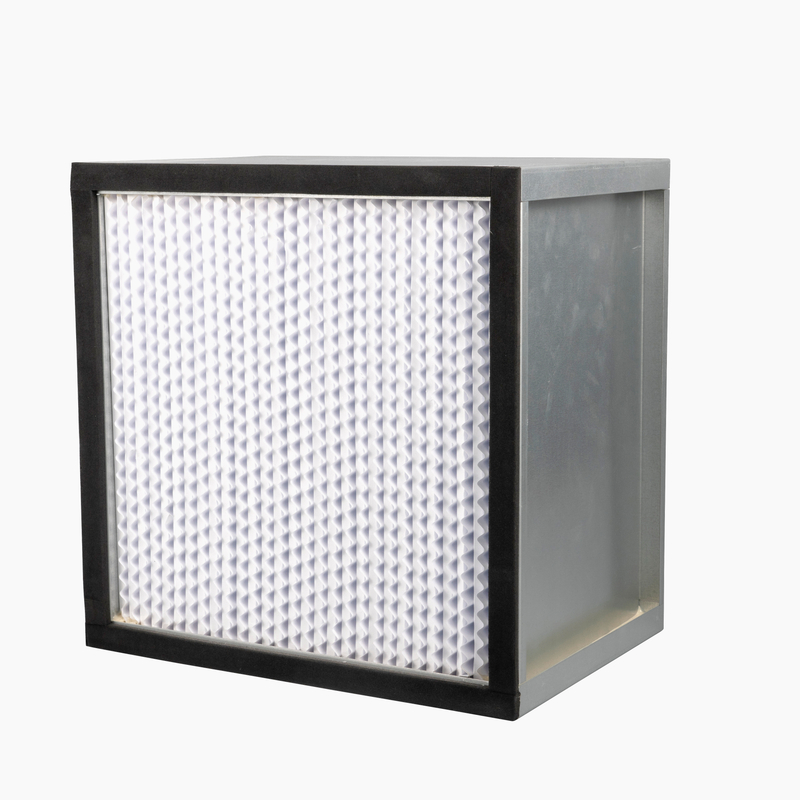

MGX High Efficiency Filter

MGX series HEPA filters are made of ultra-fine glass fiber with low resistance. It is mainly used for high temperature air purification equipment such as ovens in lithium battery cell production.

Features
  • The structure is compact and reasonable
  • Material and outer frame can be customized

Application
  • Cleanroom, commercial and industrial ventilation and air conditioning system
  • Electronics, pharmaceutical, hospitals, food and other industries in the final filter
  • High ventilation requirements or high ventilation temperature ventilation and air conditioning system
Availability:
Quantity:
Inquire Add to Basket

  • MGX


Filter Media

Ultra-fine Glass Fiber

Frame

Aluminum/Stainless Steel/Galvanized

Max. Operating Temperature

350℃

Filtration Efficiency

99.99%@0.3μm



Model

Dimension

Frame Material

Filtration Rating

Seal Position

Seal Material

MGX

W*H*D



S=Stainless Steel

L=Aluminum

G=Galvanized


11=H11

12=H12

13=H13

14=H14

IN=At inlet

OU=At outlet

B=Double-sided

W=No sealing

E=DPDM

F=Uninterrupted foam sealing



Technical Data Sheet

Model

Dimension

Frame Material

Filtration Rating

MGX

595*595*292mm

287*595*292mm

610*610*292mm

305*610*292mm

3400㎡/h

1700㎡/h

3400㎡/h

1700㎡/h

H11/H12/H13/H14


Can be customized according to different requirements

Note: In order to prolong the lifetime of the large air volume filter, a pre-filter not lower than F7 need to be installed in the front process to reduce the dust content of the upstream air flow.


High Efficiency Filter Panel Air Filter HEPA Filter
