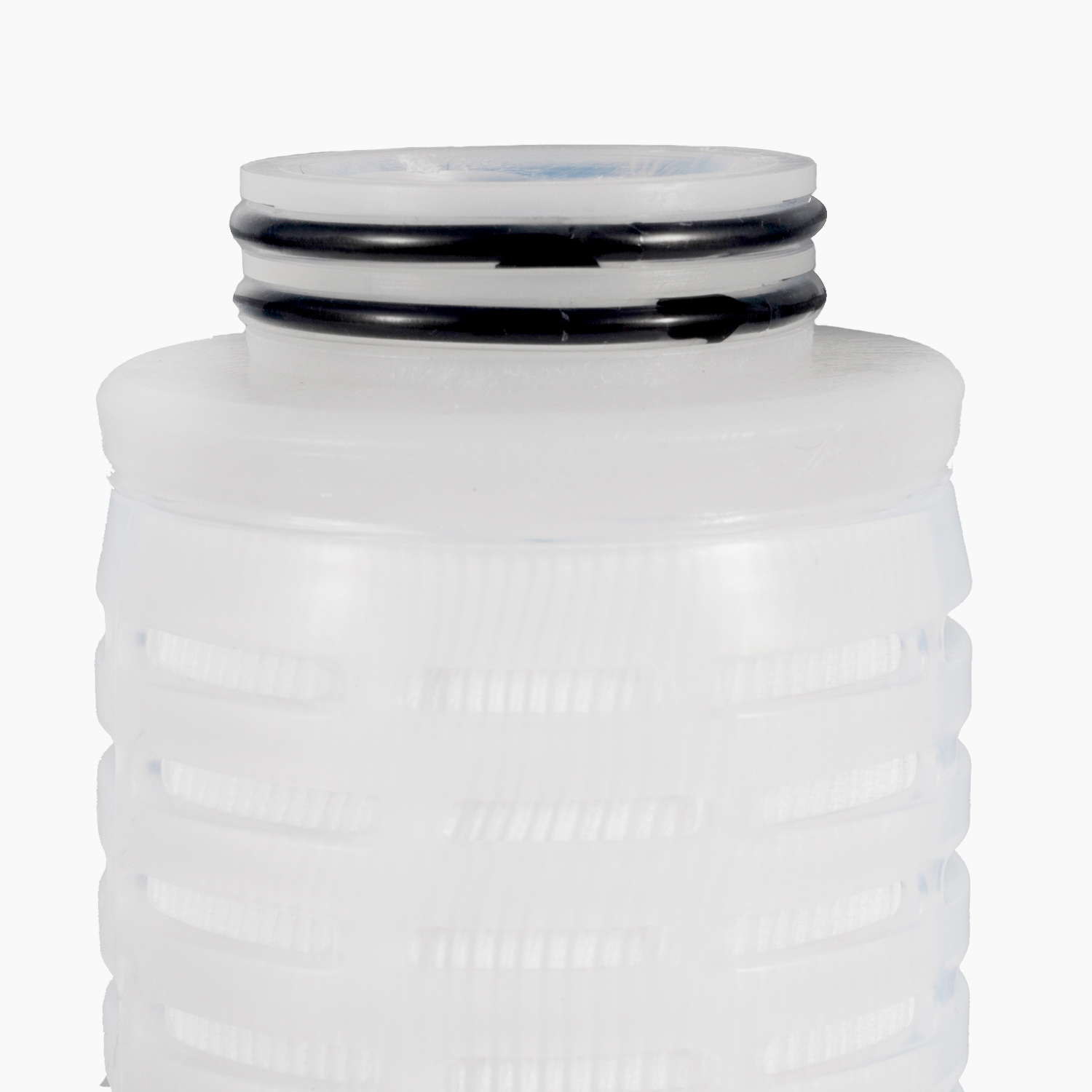

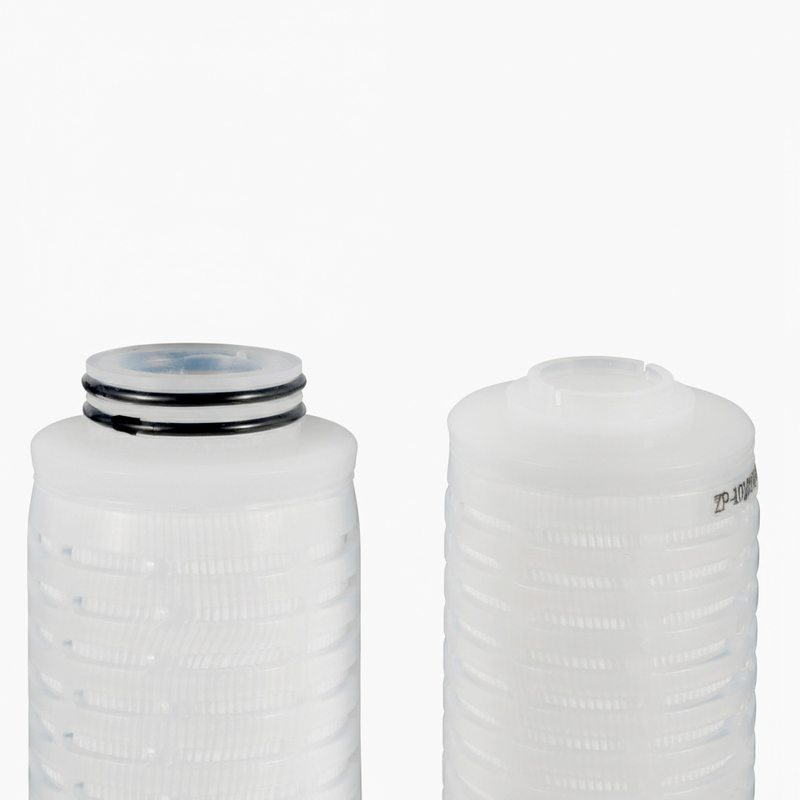

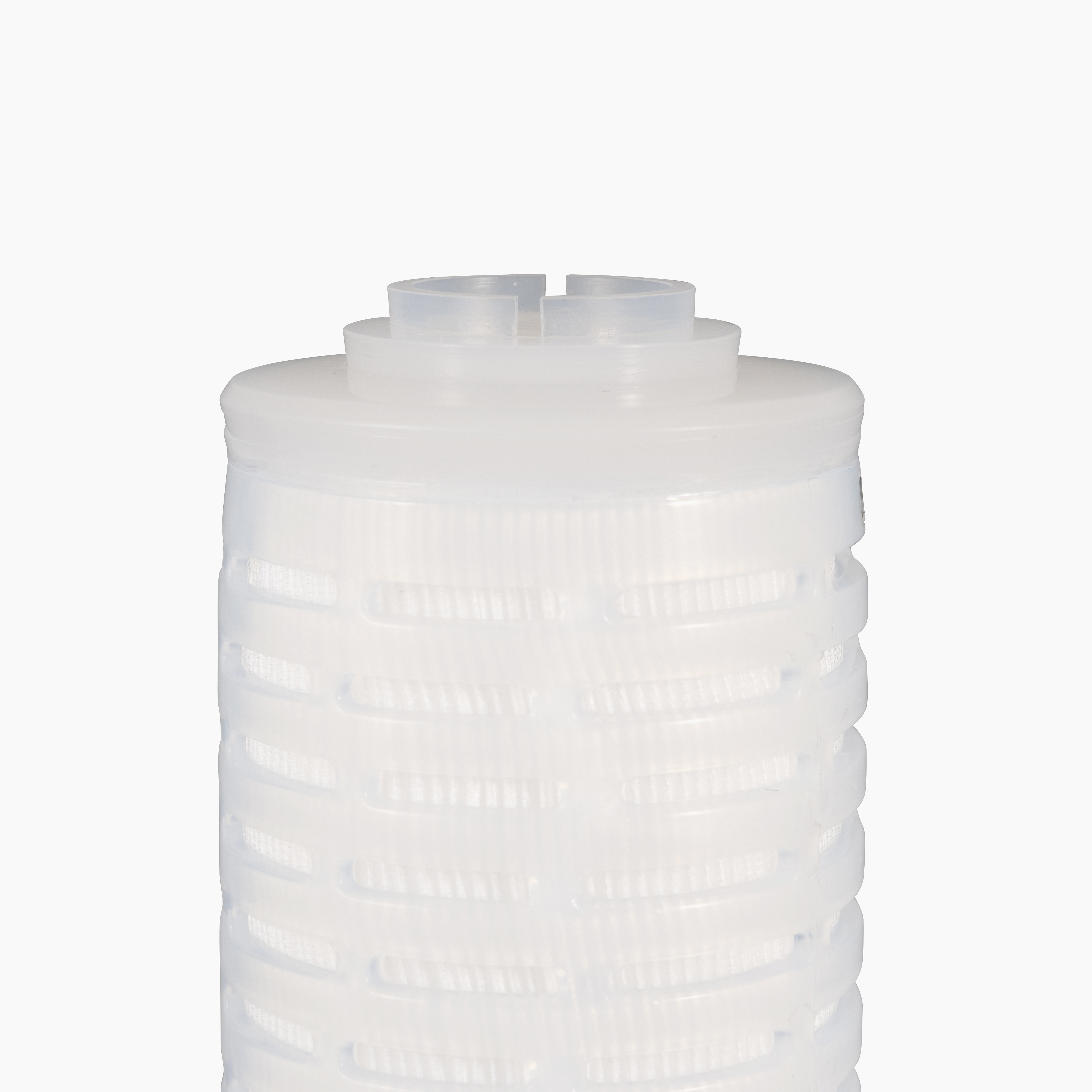

MPFA Series Perfluoro Pleated Filter Cartridge


MPFA series filter cartridges are made of PTFE membrane, PFA cage and PFA core to meet the filtration requirements in most harsh environments.
PFA material has high cleanliness and strong corrosion resistance, suitable for high precision and high-demand requirements

Features
  • Perfluorinated structures
    High temperature resistance, high pressure resistance
  • Low precipitation
    Excellent corrosion resistance and durability
  • 100% Integrity Tested

Application
  • Strong corrosive acids-bases, organic solvents
  • Fluids in a variety of harsh environments
  • Occasions with ultra-high cleanliness requirements
Availability:
Quantity:
Inquire Add to Basket

  • MPFA


Filter Media

PTFE

Cage/End Cap

PFA

Core

PFA

Max. Operating Temperature

170℃

Max. Operating Pressure Difference

4bar/50℃

3bar/100℃



Model

Filtration Rating

End Cap Type

Length

Seal Material

MPFA

MHPFA

0002=0..02μm

0005=0.05μm

0010=0.1μm

0020=0.2μm

0045=0.45μm

TC=222/Flat

SC=226/Flat

TF=222/Fin

SF=226/Fin

D=DOE

10=10"

20=20"

P=PTFE


MPFA流量特性


Perfluoro Pleated Filter Cartridge PFA Pleated Filter Cartridge
